Product Overview

Experience advanced energy management with the 170L 2 Door Lithium Ion Battery Smart Charging Cabinet. Specifically engineered for the safe and efficient charging of Li-Ion batteries, this cutting-edge charging station is packed with smart features to maintain optimal battery temperature and detect potential faults earlyminimizing fire risks. Constructed with double steel walls featuring a 40mm gap for superior insulation, this cabinet meets stringent safety standards including FM6050, OSHA 1910.106, and NFPA 30, making it ideal for commercial, industrial, and high-demand residential applications.

Key Features

Smart Charging Technology: Adaptive charging algorithms ensure optimal battery health and performance.

Enhanced Safety & Fire Protection:

• Highly sensitive smoke detector and alarm for early emergency warning.
• Temperature and humidity sensors visible from the exterior for real-time monitoring.
• Adjustable exhaust fan efficiently dissipates warm air.

Robust Construction:

• Double steel walls with a 40mm gap provide superior insulation and fireproofing.
• Internal light automatically activates when the doors are opened.

Innovative Design & Connectivity:

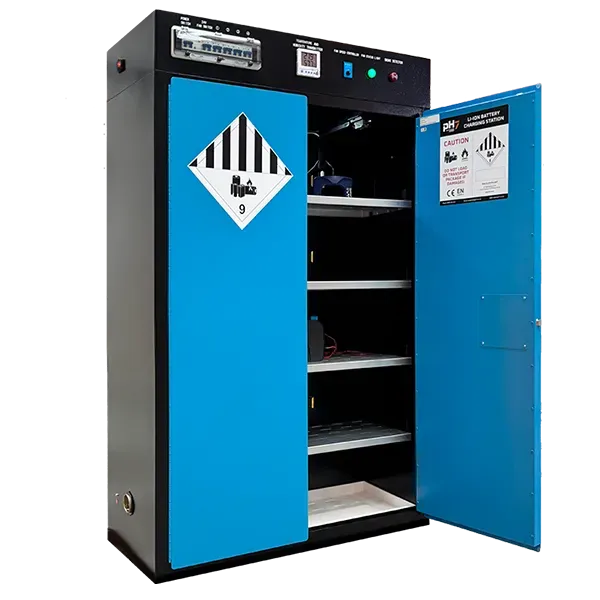

• Dual door configuration for streamlined access.

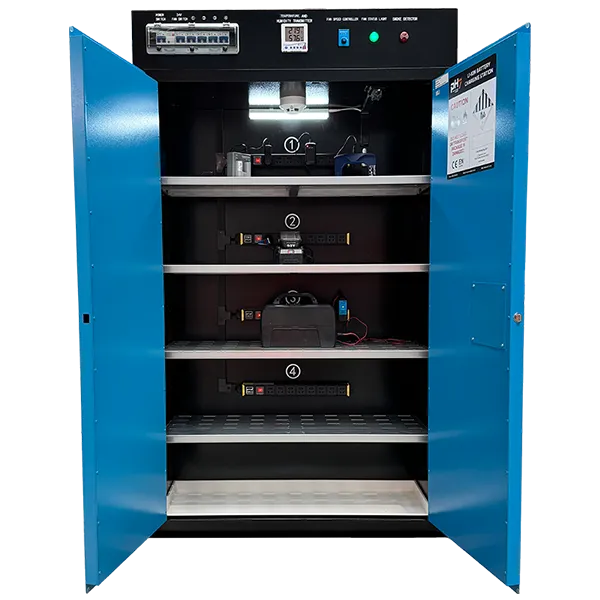

• Four adjustable shelves featuring perforations for optimal air circulation.

Extensive Plugging Options: Each shelf is equipped with a plug box containing 8 lightning protected sockets (32 sockets in total).

Convenience & Control: External isolation switches allow you to disconnect power to individual plug boxes or the entire cabinet without opening the doors.

Spill Protection: Integrated spill tray designed to capture leaks and spills, further enhancing operational safety.

Specifications

• Capacity: 170 Liters

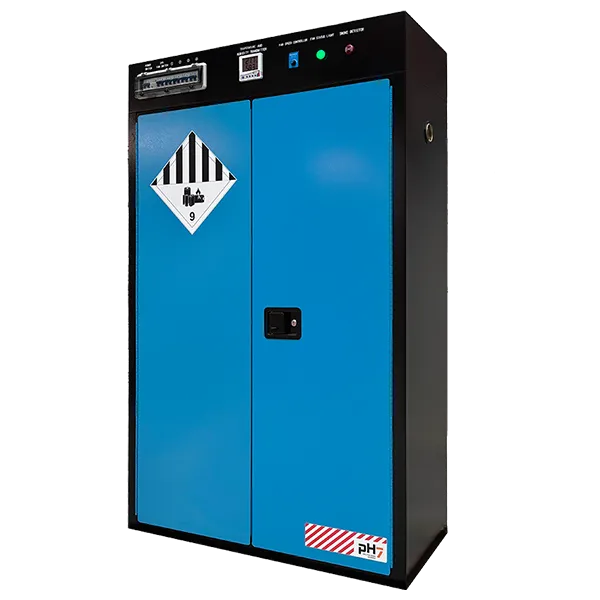

• Design: 2-Door configuration with internal LED lighting
• Battery Compatibility: Optimized for Li-Ion batteries
• Charging System: Smart, adaptive charging algorithm ensuring efficient power distribution
• Construction:
• Double steel walls with a 40mm gap for enhanced safety
• Complies with FM6050, OSHA 1910.106, and NFPA 30 regulations

Safety Mechanisms:

• Overcharge, overheat, and short-circuit protection
• Temperature & humidity monitoring
• Highly sensitive smoke detector and spill tray
• Plug Sockets: 4 levels with 8 lightning protected sockets per level (32 total)
• Shelving: Four adjustable, perforated shelves for improved air circulation
• Dimensions: 1890mm H x 1090mm W x 460mm D

Warranty:

• Cabinet body: 10 years
• Lock, parts, and accessories: 1 year
